HMDPH500PP

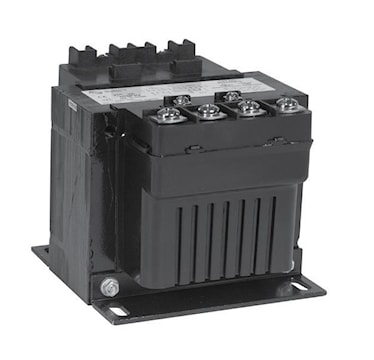

HAMMOND PH500PP Transformer ctrl 120x240V pri 120x240V sec 500VA
Description
HPS Imperator® group F encapsulated machine tool industrial control transformer specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used. High quality, high permeability silicon steel laminations. All welded construction. Lifetime warranty.
Specifications
| Brand Name | Hammond Power Solutions | Sub Brand | Machine Tool Industrial Control Transformer |
| Item Name | Machine Tool Industrial Control Transformer | Type | Dry, Core and Coil, Molded |
| Primary Voltage | 120 - 240 V/115 - 230 V/110 - 220 V | Secondary Voltage | 120 - 240 V/115 - 230 V/110 - 220 V |
| VA Rating | 500 VA | Frequency Rating | 50/60 Hz |
| Power Rating | 500 W | Dimensions | 4.75 in L x 5.94 in W x 4.31 in H |
| Mounting Type | Panel | Temperature Rating | 40 °C |
| Standards | CE Certified, CSA Certified, UL Listed | Application | For Automation, Panel Shops, Machines, Solenoids, Control Applications, Timers |
| UPC | 803423019655 |
