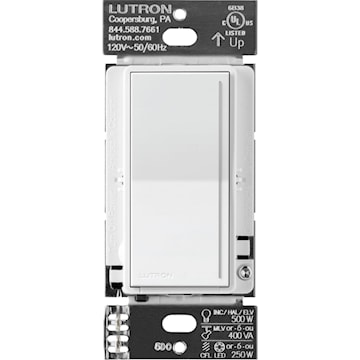

LUTRON ST-PRO-N-WH SUNNATA PRO DIMMERWHITE BOX
Description
The Sunnata PRO LED+ Touch dimmer switch with LED+ Advanced Technology provides superior dimming for up to 250W LED, 500W Incandescent/Halogen/ELV, and 400VA MLV. This innovative decorator-style LED+ dimmer switch features phase selectable dimming for a wider compatibility range among electronic low voltage, magnetic low voltage loads, as well as LED, halogen, and incandescent bulbs. The Sunnata PRO LED+ Dimmer features a large intuitive paddle to turn lights On/Off and a sleek light bar you can swipe across to dim/brighten your lights. Dim from every location by adding the new Sunnata PRO companion dimmer switch (ST-RD-xx, sold separately). Add up to four additional PRO companion dimmers to control from up to five locations - companions will match programming and lightbar status of main dimmer. Neutral wire required. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Maximum power and broad load compatibility supports up to 250W dimmable LED, 500W ELV/Inc/Hal, or 400VA MLV; phase selectable for ELV, MLV, LED, incandescent, and halogen applications; neutral wire required
A high-power LED+ Pro Max dimmer solution designed to reduce callbacks and eliminate guesswork on the jobsite
Touch or swipe the full height light bar to smoothly dim or brighten lights; the light bar also functions as a soft glow locator to easily find the dimmer in the dark
Dim from every switch location by adding Sunnata companion dimmer (ST-RD-XX, sold separately)
Add up to four companions for control from up to five locations - companions automatically mirror the main dimmer’s settings and light bar status; not compatible with 3-way mechanical switches
Utilizes screw terminals for secure, professional installation
MyLevel personalization allows you to tailor the dimmer to each space - adjust light bar brightness, set high and low end trim, enable or disable the locator light, and save a favorite preset light level
Press and hold the OFF paddle for one second to activate a 30 second delayed fade to off for added convenience and comfort
This Sunnata Touch Dimmer Switch - LED+ Pro Max model is backed by a 10-year warranty with product registration (5-year warranty without registration) and includes 24/7 support for fast, worry-free install
Includes (1) Lutron Sunnata Touch Dimmer Switch - LED+ Pro Max model, wall plate sold separately
Specifications
| Brand Name | Lutron | Sub Brand | Sunnata |
| Item Name | Touch Dimmer | Type | PRO LED+ Phase Selectable |
| Power Rating | 250 W LED/CFL, 500 W ELV/Incandescent/Halogen, 400 VA MLV | Material | Metal,Plastic |
| Color/Finish | White | Standards | NEMA SSL-7A Compliant, UL Listed |
| Application | Lighting | UPC | 784276286114 |
