PASPS5369X

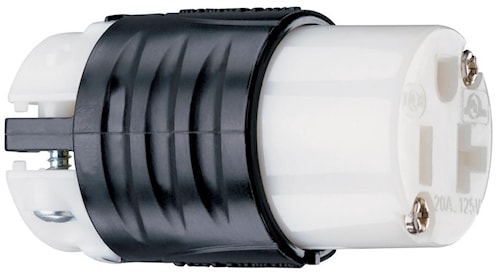

LEGRAND CANADA INC PS5369X 20A, 125V Extra-Hard Use Spec-Grade Connector, Black and White
Description
Straight Blade Connector 2-Pole 3-Wire 20A 125A
Unit arrives completely ready-to-wire, cuts installation time significantly.
Nylon housing provides impact and chemical resistance. Rugged two-piece cord grip provides more uniform cord retention. Internal dust shield keeps terminals free of contaminants.
Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
Cord-grip screws recessed to protect installer against screwdriver head slippage.
For covering patents, see www.legrand.us/patents.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Connector | Type | Connector |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Conductor Size | 4 AWG | Number of Conductors | 3 |
| Connection Type | Screw Terminal | Material | Nylon |
| Color | Black and White | Number of Ports | 2 |
| Length | 2.8 in | NEMA Rating | 5-20R |
| Standards | UL 498 | Application | Extra Hard Use |
| UPC | 785007237030 |
