CUHBQLT15215

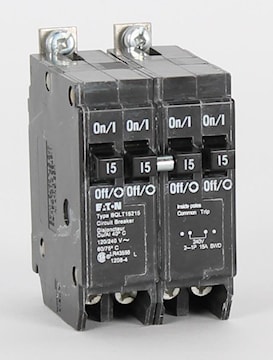

INTERNAL BQLT15215 Quadplex™ Molded Case Circuit Breaker Type BQL, Classic 2 P, Bolt-On
Description
Circuit breaker CUTLER-HAMMER bolt-on 1 pole 2x15A 2 poles 1x15A 240V 10KA.
Specifications
| Brand Name | Cutler Hammer | Sub Brand | Quadplex™ |
| Item Name | Molded Case Circuit Breaker | Type | Type BQL, Classic |
| Number of Poles | 2 | Interrupt Rating | 10 kA |
| Amperage Rating | 15 A (Outer Left 1-Pole), 15 A (Center 2-Pole), 15 A (Outer Right 1-Pole) | Voltage Rating | 120/240 VAC |
| Terminal Connection | Bolt-On | Phase | 1 |
| Conductor Size | 14-4 AWG Aluminum/Copper | Trip Type | Independent, Thermal Magnetic |
| Temperature Rating | 40 °C | Dimensions | 3-1/2 in L x 4-1/2 in W x 3-1/2 in H |
| Includes | #2 Robertson/Slot Captive Line Screw | Standards | UL Listed, CSA Certified |
| Application | Residential and Light Commercial Distribution |
